Code-generation common base. More...

#include <cgp_codegenerator.h>

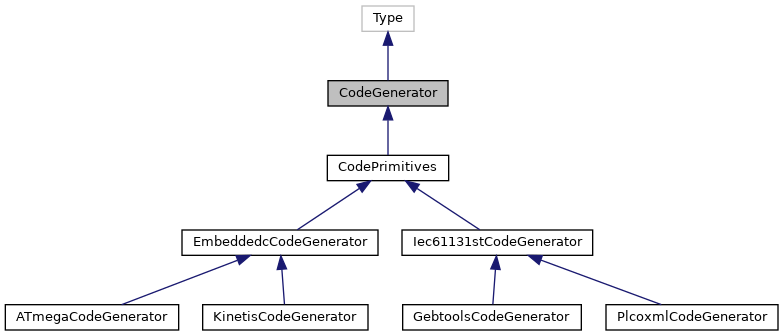

Inheritance diagram for CodeGenerator:

Classes
struct	ActionAddress
	Compiled record per action-address. More...

struct	FlagExpression
	Compiled record per input flag-expression. More...

struct	LineAddress
	Compiled record per input line. More...

class	Registration
	Registration class. More...

class	TimerAction
	Compiled record per event on how it affects timers. More...

struct	TimerConfiguration
	Compiled record per timer acting. More...

Public Types
enum	OutSink { CONSOLE , FILE , STRING }

Protected Member Functions
virtual void	DoCompile (void)
	virtual hook to input parameter compilation

virtual void	DoGenerate (void)=0
	pure virtual interface to code generation

virtual void	DoRead (TokenReader &rTr, const std::string &rLabel="", const Type *pContext=0)
	Read the configuration from TokenReader, see faudes Type for public wrappers.

virtual void	DoWrite (TokenWriter &rTw, const std::string &rLabel="", const Type *pContext=0) const
	Writes the configuration to TokenWriter, see faudes Type for public wrappers.

virtual void	DoReadTargetConfiguration (TokenReader &rTr)
	Reads global configuration from TokenReader, excl.

virtual void	DoWriteTargetConfiguration (TokenWriter &rTw) const
	Write global configuration to TokenWriter, excl.

Protected Attributes
std::string	mName
	faudes object name (aka project name)

std::vector< TimedGenerator >	mGenerators
	list of executors

std::vector< std::string >	mGeneratorNames
	list of filenames when generator are read from file

cgEventSet	mAlphabet
	event configuration by attributes

int	mWordSize
	compressed boolean capacity of target type word

int	mIntegerSize
	compressed boolean capacity of target type integer

std::map< Idx, int >	mEventBitAddress
	mapping from faudes event idx to bit address (descending priority, range 0 .

std::map< int, Idx >	mEventFaudesIdx
	mapping from bit address to faudes event idx

int	mLastInputEvent
	highest bit-address with input (or timer) event (-1 for none)

int	mLastOutputEvent
	highest bit-address with output event (-1 for none)

std::vector< std::map< Idx, int > >	mStateVectorAddress
	mapping from faudes state idx to vector index

std::vector< std::map< int, Idx > >	mStateFaudesIndex
	mapping from vector state idx to faudes index

std::vector< bool >	mUsingVectorAddressStates
	configuration of state indexing per generator

std::vector< std::vector< int > >	mTransitionVector
	compiled transition-sets, represented as vectors of integers with 0 as separator

EventSet	mUsedEvents
	configured events that are referred to by some generator

EventSet	mOutputEvents
	used events that are configured as outputs

EventSet	mInputEvents
	used events that are configured as inputs (incl timer)

EventSet	mInternalEvents
	used events that are configured as internal events (excl.

std::map< std::string, LineAddress >	mLines
	input event generation

std::map< std::string, FlagExpression >	mFlags
	input event generation

std::map< std::string, TimerConfiguration >	mTimers
	timer definitions

std::map< std::string, ActionAddress >	mActionAddresses
	action addresses

std::map< std::string, TimerAction >	mTimerActions
	timer actions by event name

int	mVerbLevel
	diagnpstic-output level

std::string	mOutMode
	output file name (base)

char	mMuteMode
	current output mode

bool	mMuteComments
	mute comments

std::string	mRecentMutedComment
	recent muted comment

std::ostream *	pOutStream
	output stream

std::ostream *	pErrStream
	error stream

Configuration – Generators
Generators are internally organised as a vector. There is a programatic read-only interface with Size() and At() as well as Begin() and End() iterators. Insert methods amount to a "push_back". Individual removal of generators is currently not supported, use Clear() for a consistent reset.
typedef std::vector< TimedGenerator >::const_iterator	Iterator
	Iterator for read-only access of generators.

Idx	Size (void) const
	Number of generators.

void	Insert (const std::string &file)
	Add a Generator from file.

void	Insert (const TimedGenerator &rGen)
	Add a generator by reference.

const TimedGenerator &	At (int i) const
	Direct access for read-only access of generators.

Iterator	Begin (void) const
	Begin-iterator for read-only access of generators.

Iterator	End (void) const
	End-iterator for read-only access of generators.

Compiled Data – Eventsets
Faudes-EventSets are alternatively represented as boolean vectors. Each individual event has a bit-address to specify the location of the corresponding boolean value in the vector. By convention, bit-addresses start with 0. To facilitate event scheduling, events are ordered by descending priority. Implicitly, this also associates with each event a consecutive target event index, starting with 1. Example for an overall amount of 9 events and the faudes and the event set {3,6,9} faudes Idx: 1 4 5 6 3 2 8 9 7 (typically this is consecutive but not ordered by priority) target Idx: 1 2 3 4 5 6 7 8 9 (consecutive and ordered by priority) bit-address: 0 1 2 3 4 5 6 7 8 (corresponding bit address) vector value: 0 0 0 1 1 0 0 1 0 (vector for the set {3,6,9}) Regarding efficiency of the generated code, the target platform typically represent boolean vectors as as word-arrays. Continuing the above example for a word-size of 4bits we obtain the correspondence. bit-address: 0 1 2 3 4 5 6 7 8 - - - word index: [ word 0 ][ word 1 ][ word 2 ] (reading "lsb on left hand side")
typedef unsigned long	word_t
	Code-generator internal data type of target words.

std::vector< int >	mWordAddressVector
	Look-up table to map a bit-address to the word-index.

std::vector< word_t >	mBitMaskVector
	Look-up table to map a bit-address to the word-bitmask.

virtual int	EventTargetIdx (Idx idx)
	Get target event Idx from faudes Idx (use bit-address + 1)

virtual int	EventTargetIdx (const std::string &ev)
	Get target event Idx from faudes name (use bit-address + 1)

int	EventBitAddress (Idx idx)
	Get event bit-address from faudes Idx (consecutive, starts at 0)

Idx	EventFaudesIdx (int idx)
	Get faudes Idx from target Idx (aka from bit-address + 1)

std::vector< bool >	EventBitMask (Idx idx)
	Get vector representation for a single faudes event Idx.

std::vector< bool >	EventBitMask (const EventSet &eset)
	Get vector representation for faudes event set.

int	EventBitMaskSize (void)
	Get overall number of events.

word_t	WordFromBitVector (const std::vector< bool > &vect, int wordindex)
	Extract individual word from boolean vector.

std::vector< word_t >	WordVectorFromBitVector (const std::vector< bool > &vect)
	Convert boolean vector to word array.

Compiled Data – Generation of Events by Input Lines, Flags and Timers
For each line-level that is relevant for edge detection, a record is kept that accumulates all events that an edge of the respective line must generate. The data set is formally implemented as map with the line address as the key. Similarly, a record for event triggering flag-expressions and timers is kept. For the actual data structures, see LineAddress, FlagExpression and TimerConfiguration, respectively.
typedef std::map< std::string, LineAddress >::iterator	LineIterator
	Access to line records by iterator.

typedef std::map< std::string, FlagExpression >::iterator	FlagIterator
	Access to flag records by iterator.

typedef std::map< std::string, TimerConfiguration >::iterator	TimerIterator
	Access to timer records by iterator.

LineIterator	LinesBegin ()
	Access to line records by iterator.

LineIterator	LinesEnd ()
	Access to line records by iterator.

FlagIterator	FlagsBegin ()
	Access to flag records by iterator.

FlagIterator	FlagsEnd ()
	Access to flag records by iterator.

TimerIterator	TimersBegin ()
	Access to timer records by iterator.

TimerIterator	TimersEnd ()
	Access to timer records by iterator.

Compiled Data – Effects of Events to Output Lines, Flags and Timers
For each abstract target address listed in an action we maintain a record whether it is set or cleared (i.e. interpreted as an address of a boolean type) or executed (i.e. whether is is an an address of a function or an assignment expression, depending on what the target supports). Similarly, we record on a per event basis, which timers are to be started/stoped/reset.
typedef std::map< std::string, ActionAddress >::iterator	ActionAddressIterator
	Access to action record by iterator.

typedef std::map< std::string, TimerAction >::iterator	TimerActionIterator
	Access to timer records by iterator.

ActionAddressIterator	ActionAddressesBegin ()
	Access to action addresses by iterator.

ActionAddressIterator	ActionAddressesEnd ()
	Access to action addresses by iterator.

TimerActionIterator	TimerActionsBegin ()
	Access to timer records by iterator.

TimerActionIterator	TimerActionsEnd ()
	Access to timer records by iterator.

Basic Class Maintenance
Basic class maintenance methods to construct/destruct CodeGenerator objects and compile the configuration to an alternative representation. Note that the interface for file i/o of configuration data is inherited from faudes::Type.
	CodeGenerator (void)
	Constructor.

virtual	~CodeGenerator (void)
	Destructor.

virtual void	Clear (void)
	Clear all data.

virtual void	Name (const std::string &rName)
	Set objects's name (reimplementing base faudes::Type)

virtual const std::string &	Name (void) const
	Get objects's name (reimplementing base faudes::Type)

virtual void	Compile (void)
	Compile input data for alternative representation.

static std::string	VersionString (void)
	Version (refers to macro COMPILEDES_VERSION, defined in cgp_codegenerator.h)

Configuration – Alphabet
The overall alphabet amounts to the union of all provided generator alphabets, augmented by the event attributes for execution semantics; see cgEventSet for details. The external interface provides symbolic name and index look-up, both referring to the faudes-global symbol table and faudes event indices. There are also setters/getters to edit individual attributes. attribute type.
Idx	EventIndex (const std::string &rName) const
	Faudes-event index lookup.

std::string	EventName (Idx index) const
	Faudes-event name lookup.

const AttributeCodeGeneratorEvent &	EventAttribute (Idx ev) const
	Event configuration attribute lookup.

void	EventAttribute (Idx ev, const AttributeCodeGeneratorEvent &attr)
	Set event attribute.

void	Alphabet (const cgEventSet &rAlphabet)
	Set all event attributes.

const cgEventSet &	Alphabet (void) const
	Access alphabet (incl event attributes)

Compiled Data – Transition Relation
As an optional form of representation, transition relations are compiled to integer vectors. Each state corresponds to a particular segment of the vector to hold pairs or events and successor states. The end of each Segment is flagged by the invalid event index zero. Example for {q1-(1)->q1; q1-(3)->q2; q2-(1)->q3; q3-(4)->q3; q3-(2)->q1; q3-(1)->q2}; Vector index: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Current state: q1 q2 q3 Successor/Event: ev q1 ev q2 \|\| ev q3 \|\| ev q3 ev q1 ev q2 \|\| Vector value: 1 0 3 5 0 1 8 0 4 8 2 0 1 5 0 Note that the event indices are target indices (priority sorted, starting from 1, consecutive). When this scheme is used, it implicitly defines target state indices to be transition-vector indices (starting by 0, however non-consecutive). As a variation, one may maintaine the original state indices by using an indirect andress scheme. This option is useful when the original state indices are relevant fo state-update hooks an symbolic state names. Example: Vector index: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Current state: q1 q2 q3 Successor/Event: ev q1 ev q2 \|\| ev q3 \|\| ev q3 ev q1 ev q2 \|\| Transition vector: 1 1 3 2 0 1 3 0 4 3 2 1 1 2 0 Address vector: 0 0 5 8
const std::vector< int > &	TransitionVector (size_t git)
	Get target state index (refer to vector representation as default, overload in CodePrimitives)

virtual int	StateTargetIdx (size_t git, Idx idx)
	Get target state index (refer to vector representation as default, overload in CodePrimitives)

virtual Idx	StateFaudesIdx (size_t git, int idx)
	Get faudes state index (refer to vector representation as default, overload in CodePrimitives)

Code Generation Interface
Although the base class does not generate any code, it provides a common external interface, i.e., a GodeGenerator application may uniformly generate code regardless of the particular target; see also compiledes.cpp. In support of derived classes, CodeGenerator also provides an interface for the output of the actual code either to console, a string or a file.
virtual void	Generate (void)
	Generate code.

void	Verbose (int level, std::ostream *altout=0)
	Set verbosity level.

virtual void	OutputMode (const std::string &mode)
	Set code output mode.

std::string	OutputMode (void)
	Report code output mode.

virtual std::ostream &	Output (void)
	Output stream.

const std::string &	OutputString (void)
	Get accumulated output as string.

void	OutputString (const std::string &strbuf)
	Set output to string.

virtual void	MuteMode (char mode)
	Set current mute mode.

virtual void	MuteCond (char mode)
	Set mode condition.

virtual void	LineFeed (int lines=1)
	LineFeed (convenience support for derived classes)

virtual std::string	LineCount (void)
	LineFeed (convenience support for derived classes)

virtual void	IndentInc ()
	Indentation (convenience support for derived classes)

virtual void	IndentDec ()
	Indentation (convenience support for derived classes)

virtual void	Comment (const std::string &text)
	Write a comment (reimplement in derived classes, call base)

std::string	RecentComment (void)
	Recent muted comment (convenience support for derived classes)

virtual void	XmlTextEscape (bool on)
	XmlTextEscape (escape "<", ">", "&", "\"" and "'")

virtual void	XmlCdataEscape (bool on)
	XmlCdataEscape (escape "]]>")

virtual void	MuteComments (bool on)
	Mute comments (convenience support for derived classes)

virtual void	MuteVspace (bool on)
	Mute empty lines (convenience support for derived classes)

Code-Generator Registry
Derived classes register via a static registration mechanism to provide an application-invokable constructor. The static registry records the constructor with a std::string typename as identifier. The purpose of this mechanism is to instantiate derived classes by their identifier at runtime.E.g. CodeGenerator* cg = CodeGenerator::New("iec"); CodeGenerator Code-generation common base. Definition cgp_codegenerator.h:106 CodeGenerator::New static CodeGenerator * New(const std::string &type) Instantiate by identifier (returns 0 on unknown class) Definition cgp_codegenerator.cpp:63 instantiates a CodeGenerator object of the type registered by "iec". See the command-line tool compiledes.cpp for a relevant use case. Registration can be conveniently triggered by instantiation of a CodeGenerator::Registration object via the provided macro. E.g. in the source that defines the class IecCodeGenerator FAUDES_REGISTERCODEGENERATOR("iec",IecCodeGenerator); FAUDES_REGISTERCODEGENERATOR #define FAUDES_REGISTERCODEGENERATOR(ftype, ctype) Class registration macro. Definition cgp_codegenerator.h:831 is used to register the respective class with the identifier "iec".
static void	Register (const std::string &type, CodeGenerator (newcg)(void))
	Insert derived class in the registry.

static std::vector< std::string >	Registry (void)
	Access registry contents.

static CodeGenerator *	New (const std::string &type)
	Instantiate by identifier (returns 0 on unknown class)

Detailed Description

The code-generator base class maintains the configuration data common to libFAUDES code generators. To this end, the configuration consists of

a list of generators
event attributes to specify execution semantics per event

The CodeGenerator implements file i/o of its configuration via the FAUDES type interface Read()/Write() and provides the virtual member functions DoReadTargetConfiguration()/DoWriteTargetConfiguration() for derived classes to add additional configuration features.

There is also a programatic interface to Insert(Generator&) generators and to access individual generators with At(). Likewise, there are setters and getters to access event attributes; see also AttributeCodeGeneratorEvent.

The CodeGenerator provides the method Compile() to convert the configuration data to an alternative representation tailored for code generation. E.g., it extracts a map of line levels to be monitored for edge detection by collecting all lines used by any event. The base class currently implements the below data structures, which can be extended for derived classes my the virtual member-function interface DoCompile().

map configuration events to consecutive target event indices ordered by execution priority
translate sets of configuration events to boolean vectors or bit-mask word-arrays.
map configuration state indices to consecutive target state indices
collection of all relevant input line addresses with associated trigger configuration
collection of all relevant flags used in exec-triggers
a collection of all addresses relevant for output actions

Code generation is triggered by Generate() with the virtual interface DoGenerate(). In this base class, DoGenerate() does nothing, i.e., to obtain a functional code generator, re-implement the method DoGenerate() in a derived class. See CodePrimitives() for the next level of specialisation.

Technical Detail: we use faudes Type as base for serialisation only. Assignment and copy constructor are not implemented.

File format by example. See also AttributeCodeGeneratorEvent for the configuration of individual events.

 <CodeGenerator name="blink">

 % 1. specify generators (either explicitly or by filename)
 <Generators>
 <Generator name="blink1">
 [.. libFAUDES generator format ..]
 </Generator>
 [.. more generators ..]
 </Generators>

 % 2. specify event configuration
 <EventConfiguration>
 <Event name="led_on">
 [.. event attribute in AttributeCodeGeneratorEvent format ..]
 </Event>
 [.. more events ..]
 </EventConfiguration>

 % 3. target specific configuration
 <TargetConfiguration>
 [.. as provided by derived classes ..]
 </TargetConfiguration>

 </CodeGenerator>

Definition at line 106 of file cgp_codegenerator.h.

Class Documentation

◆ CodeGenerator::ActionAddress

struct CodeGenerator::ActionAddress

Definition at line 538 of file cgp_codegenerator.h.

Class Members
string	mAddress	target address as specified in configuration
bool	mSetClr	is a set/clr type of address
bool	mExe	is an executable type of address

◆ CodeGenerator::FlagExpression

struct CodeGenerator::FlagExpression

Definition at line 489 of file cgp_codegenerator.h.

Class Members
string	mAddress	target expression to represent the line value
EventSet	mEvents	events to trigger on positive evaluation

◆ CodeGenerator::LineAddress

struct CodeGenerator::LineAddress

Definition at line 472 of file cgp_codegenerator.h.

Class Members
string	mAddress
int	mBitAddress	target expression to represent line value
EventSet	mPosEvents	bit-address of buffer for edge detection (consecutive)
EventSet	mNegEvents	events to trigger on positive edge
EventSet	mPosStatics	events to trigger on negative edge
EventSet	mNegStatics	events to trigger on high power on
bool	mStatic	events to trigger on low power on

◆ CodeGenerator::TimerConfiguration

struct CodeGenerator::TimerConfiguration

Definition at line 504 of file cgp_codegenerator.h.

Class Members
string	mAddress	target address prefix to maintain timer state
string	mElapseEvent	event to trigger on timer elapse
string	mInitialValue	target representation of initial value
EventSet	mStartEvents	start events as in AttributeCodeGeneratorEvent
EventSet	mStopEvents	stop events as in AttributeCodeGeneratorEvent
EventSet	mResetEvents	reset events as in AttributeCodeGeneratorEvent

Member Typedef Documentation

◆ Iterator

typedef std::vector<TimedGenerator>::const_iterator CodeGenerator::Iterator

Definition at line 240 of file cgp_codegenerator.h.

◆ word_t

typedef unsigned long CodeGenerator::word_t

Definition at line 394 of file cgp_codegenerator.h.

◆ LineIterator

typedef std::map<std::string,LineAddress>::iterator CodeGenerator::LineIterator

Definition at line 482 of file cgp_codegenerator.h.

◆ FlagIterator

typedef std::map<std::string,FlagExpression>::iterator CodeGenerator::FlagIterator

Definition at line 497 of file cgp_codegenerator.h.

◆ TimerIterator

typedef std::map<std::string,TimerConfiguration>::iterator CodeGenerator::TimerIterator

Definition at line 519 of file cgp_codegenerator.h.

◆ ActionAddressIterator

typedef std::map<std::string,ActionAddress>::iterator CodeGenerator::ActionAddressIterator

Definition at line 547 of file cgp_codegenerator.h.

◆ TimerActionIterator

typedef std::map<std::string,TimerAction>::iterator CodeGenerator::TimerActionIterator

Definition at line 580 of file cgp_codegenerator.h.

Member Enumeration Documentation

◆ OutSink

enum CodeGenerator::OutSink

Definition at line 116 of file cgp_codegenerator.h.

Constructor & Destructor Documentation

◆ CodeGenerator()

CodeGenerator::CodeGenerator ( void )

Definition at line 29 of file cgp_codegenerator.cpp.

◆ ~CodeGenerator()

CodeGenerator::~CodeGenerator ( void )

virtual

Definition at line 39 of file cgp_codegenerator.cpp.

Member Function Documentation

◆ Clear()

void CodeGenerator::Clear ( void )

virtual

Derived classes must implement this to reset ALL configuration data to consistent defaults.

Reimplemented in ATmegaCodeGenerator, CodePrimitives, EmbeddedcCodeGenerator, GebtoolsCodeGenerator, Iec61131stCodeGenerator, KinetisCodeGenerator, and PlcoxmlCodeGenerator.

Definition at line 69 of file cgp_codegenerator.cpp.

◆ Name() [1/2]

virtual void CodeGenerator::Name ( const std::string & rName )

inlinevirtual

Parameters

rName Name

Definition at line 156 of file cgp_codegenerator.h.

◆ Name() [2/2]

virtual const std::string & CodeGenerator::Name ( void ) const

inlinevirtual

Returns: Name of generator

Definition at line 164 of file cgp_codegenerator.h.

◆ Compile()

void CodeGenerator::Compile ( void )

virtual

The designated hook for reimplementation is the also virtual "DoCompile()". Do not reimplement Compile() itself, since is resets internal data structures.

Definition at line 259 of file cgp_codegenerator.cpp.

◆ VersionString()

std::string CodeGenerator::VersionString ( void )

static

Definition at line 238 of file cgp_codegenerator.cpp.

◆ Size()

Idx CodeGenerator::Size ( void ) const

Definition at line 104 of file cgp_codegenerator.cpp.

◆ Insert() [1/2]

void CodeGenerator::Insert ( const std::string & file )

This method uses the Generator's read to find the first generator in the specified file.

Parameters

file	File to read

Exceptions

Exception

non-deterministic generator (id 501)
token mismatch (id 502)
IO errors (id 1)

Definition at line 79 of file cgp_codegenerator.cpp.

◆ Insert() [2/2]

void CodeGenerator::Insert ( const TimedGenerator & rGen )

A copy of the references generator will be inserted to the internal data-structures.

Parameters

rGen	Generator to add

Exceptions

Exception

non-deterministic generator (id 501)

Definition at line 93 of file cgp_codegenerator.cpp.

◆ At()

const TimedGenerator & CodeGenerator::At ( int i ) const

inline

Definition at line 237 of file cgp_codegenerator.h.

◆ Begin()

Iterator CodeGenerator::Begin ( void ) const

inline

Definition at line 243 of file cgp_codegenerator.h.

◆ End()

Iterator CodeGenerator::End ( void ) const

inline

Definition at line 246 of file cgp_codegenerator.h.

◆ EventIndex()

Idx CodeGenerator::EventIndex ( const std::string & rName ) const

inline

Parameters

rName Name of event to lookup

Returns: Valid index or 0 if non-existent

Definition at line 278 of file cgp_codegenerator.h.

◆ EventName()

std::string CodeGenerator::EventName ( Idx index ) const

inline

Parameters

index Index of event to look up

Returns: Name or empty std::string if non-existent

Definition at line 289 of file cgp_codegenerator.h.

◆ EventAttribute() [1/2]

const AttributeCodeGeneratorEvent & CodeGenerator::EventAttribute ( Idx ev ) const

Parameters

ev

Returns: Reference to respective attribute

◆ EventAttribute() [2/2]

void CodeGenerator::EventAttribute	(	Idx	ev,
		const AttributeCodeGeneratorEvent &	attr
	)

Parameters

ev	Event index
attr	New attribute

Exceptions

Exception Index not found in EventSymbolMap (id 42)

◆ Alphabet() [1/2]

void CodeGenerator::Alphabet ( const cgEventSet & rAlphabet )

Any previous attributes are removed. Any events not in rAlphabet will have the default attribute attached (which is priority 0)

Parameters

rAlphabet EventSet with AttributeCodeGeneratorEvent data

◆ Alphabet() [2/2]

const cgEventSet & CodeGenerator::Alphabet ( void ) const

inline

Returns: Overall alphabet

Definition at line 331 of file cgp_codegenerator.h.

◆ EventTargetIdx() [1/2]

int CodeGenerator::EventTargetIdx ( Idx idx )

virtual

Definition at line 496 of file cgp_codegenerator.cpp.

◆ EventTargetIdx() [2/2]

int CodeGenerator::EventTargetIdx ( const std::string & ev )

virtual

Definition at line 501 of file cgp_codegenerator.cpp.

◆ EventBitAddress()

int CodeGenerator::EventBitAddress ( Idx idx )

Definition at line 488 of file cgp_codegenerator.cpp.

◆ EventFaudesIdx()

Idx CodeGenerator::EventFaudesIdx ( int idx )

Definition at line 506 of file cgp_codegenerator.cpp.

◆ EventBitMask() [1/2]

std::vector< bool > CodeGenerator::EventBitMask ( Idx idx )

Definition at line 514 of file cgp_codegenerator.cpp.

◆ EventBitMask() [2/2]

std::vector< bool > CodeGenerator::EventBitMask ( const EventSet & eset )

Definition at line 528 of file cgp_codegenerator.cpp.

◆ EventBitMaskSize()

int CodeGenerator::EventBitMaskSize ( void )

Definition at line 544 of file cgp_codegenerator.cpp.

◆ WordFromBitVector()

CodeGenerator::word_t CodeGenerator::WordFromBitVector	(	const std::vector< bool > &	vect,
		int	wordindex
	)

Definition at line 549 of file cgp_codegenerator.cpp.

◆ WordVectorFromBitVector()

std::vector< CodeGenerator::word_t > CodeGenerator::WordVectorFromBitVector ( const std::vector< bool > & vect )

Definition at line 559 of file cgp_codegenerator.cpp.

◆ TransitionVector()

const std::vector< int > & CodeGenerator::TransitionVector ( size_t git )

Definition at line 571 of file cgp_codegenerator.cpp.

◆ StateTargetIdx()

int CodeGenerator::StateTargetIdx	(	size_t	git,
		Idx	idx
	)

virtual

Reimplemented in CodePrimitives.

Definition at line 576 of file cgp_codegenerator.cpp.

◆ StateFaudesIdx()

Idx CodeGenerator::StateFaudesIdx	(	size_t	git,
		int	idx
	)

virtual

Reimplemented in CodePrimitives.

Definition at line 585 of file cgp_codegenerator.cpp.

◆ LinesBegin()

CodeGenerator::LineIterator CodeGenerator::LinesBegin ( void )

Definition at line 594 of file cgp_codegenerator.cpp.

◆ LinesEnd()

CodeGenerator::LineIterator CodeGenerator::LinesEnd ( void )

Definition at line 599 of file cgp_codegenerator.cpp.

◆ FlagsBegin()

CodeGenerator::FlagIterator CodeGenerator::FlagsBegin ( void )

Definition at line 604 of file cgp_codegenerator.cpp.

◆ FlagsEnd()

CodeGenerator::FlagIterator CodeGenerator::FlagsEnd ( void )

Definition at line 609 of file cgp_codegenerator.cpp.

◆ TimersBegin()

CodeGenerator::TimerIterator CodeGenerator::TimersBegin ( void )

Definition at line 614 of file cgp_codegenerator.cpp.

◆ TimersEnd()

CodeGenerator::TimerIterator CodeGenerator::TimersEnd ( void )

Definition at line 619 of file cgp_codegenerator.cpp.

◆ ActionAddressesBegin()

CodeGenerator::ActionAddressIterator CodeGenerator::ActionAddressesBegin ( void )

Definition at line 624 of file cgp_codegenerator.cpp.

◆ ActionAddressesEnd()

CodeGenerator::ActionAddressIterator CodeGenerator::ActionAddressesEnd ( void )

Definition at line 629 of file cgp_codegenerator.cpp.

◆ TimerActionsBegin()

CodeGenerator::TimerActionIterator CodeGenerator::TimerActionsBegin ( void )

Definition at line 634 of file cgp_codegenerator.cpp.

◆ TimerActionsEnd()

CodeGenerator::TimerActionIterator CodeGenerator::TimerActionsEnd ( void )

Definition at line 639 of file cgp_codegenerator.cpp.

◆ Generate()

void CodeGenerator::Generate ( void )

virtual

doxygen group

This method sets up the output stream and triggers actual code generation by invoking the virtual method DoGenerate(). To adapt output facilities, reimplement Generate() to set up the protected variable pOutStream appropriately, then invoke the base class method. To adapt code-generation, reimplement DoGenerate() or, preferably, its building blocks; see also Implementation Outline.

Must invoke Compile() before Generate()

Definition at line 665 of file cgp_codegenerator.cpp.

◆ Verbose()

void CodeGenerator::Verbose	(	int	level,
		std::ostream *	altout = `0`
	)

Progress report and compilation details are forwarded to std::cerr by default. Supported levels are "0<>warnings only", "1<>verbose", "2<>very verbose". Diagnostic outpost is conveniently organised by the macros FCG_VERB0,FCG_VERB1 and FCG_VERB2 defined at the top of this file.

Definition at line 645 of file cgp_codegenerator.cpp.

◆ OutputMode() [1/2]

virtual void CodeGenerator::OutputMode ( const std::string & mode )

inlinevirtual

Code can be output to the console (mode="std::cout"), a string buffer (mode=="std::string") or a file (mode amounts to the filename). The default behaviour is console output. Code generators that produce multiple output files will interprete a provided file name as base and append appropriate suffixes.

Code generators that only support specific output modes should reimplement this virtual function to enforce the respective constrains and/or to issue warning messages,

Parameters

filebase (Base)name of output file(s)

Definition at line 651 of file cgp_codegenerator.h.

◆ OutputMode() [2/2]

std::string CodeGenerator::OutputMode ( void )

inline

See the corresponding setter OutputFile(const std::string&)

Definition at line 660 of file cgp_codegenerator.h.

◆ Output()

std::ostream & CodeGenerator::Output ( void )

virtual

This stream is setup by Generate() to operate in the specified mode. To this end, CodeGenerator uses a filtered stream that provides various features like line counting, XML escape, and mute modes to support multi-pass code generation. The interface to these extra features is via the CodeGenerator class. For the standard C++ formating features, Output() is a plain std::ostream reference.

Derived classes may use more advanced output facilities, however, they are meant to reimplement at least line count and mute by the interface via the class CodeGenerator.

Definition at line 691 of file cgp_codegenerator.cpp.

◆ OutputString() [1/2]

const std::string & CodeGenerator::OutputString ( void )

Returns the output generatedd so far as string. This is only functional when initialised with output mode "std::string".

Technical Note: the return value is a reference to an object owned by the internal output buffer; the reference becomes invalid at the next invokation of Generate() or at the destruction of the base class object.

Definition at line 695 of file cgp_codegenerator.cpp.

◆ OutputString() [2/2]

void CodeGenerator::OutputString ( const std::string & strbuf )

Overwrites any output generated so far. This is only functional when initialised with output mode "std::string".

Definition at line 701 of file cgp_codegenerator.cpp.

◆ MuteMode()

void CodeGenerator::MuteMode ( char mode )

virtual

Subsequent output is muted if the current mute condition does not match the mute mode. The default mute mode is '*' and matches any mute condition; see below MuteCond(char). Setting a mode other than '*' mutes the output until the condition matches the mode; see also MuteCond(char).

By convention, low-level output-generating functions use MuteCond(char) to insist in a particular global mute state which in turn is set via MuteMode(char) by some higher level function that controls a larger code fragment. This mechanism is meant to faciltate simple multi-pass code generation; see GebtoolsCodeGenerator for an example.

Definition at line 708 of file cgp_codegenerator.cpp.

◆ MuteCond()

void CodeGenerator::MuteCond ( char mode )

virtual

Subsequent output is muted if the current mute mode does not match the condition. The default behaviour is the condition '*' which matches any mode, so no muting takes place. See also MuteMode(char).

Definition at line 716 of file cgp_codegenerator.cpp.

◆ LineFeed()

void CodeGenerator::LineFeed ( int lines = 1 )

virtual

Definition at line 727 of file cgp_codegenerator.cpp.

◆ LineCount()

std::string CodeGenerator::LineCount ( void )

virtual

Definition at line 781 of file cgp_codegenerator.cpp.

◆ IndentInc()

void CodeGenerator::IndentInc ( void )

virtual

Definition at line 736 of file cgp_codegenerator.cpp.

◆ IndentDec()

void CodeGenerator::IndentDec ( void )

virtual

Definition at line 742 of file cgp_codegenerator.cpp.

◆ Comment()

void CodeGenerator::Comment ( const std::string & text )

virtual

Reimplemented in CodePrimitives, EmbeddedcCodeGenerator, and Iec61131stCodeGenerator.

Definition at line 760 of file cgp_codegenerator.cpp.

◆ RecentComment()

std::string CodeGenerator::RecentComment ( void )

inline

Definition at line 743 of file cgp_codegenerator.h.

◆ XmlTextEscape()

void CodeGenerator::XmlTextEscape ( bool on )

virtual

Definition at line 748 of file cgp_codegenerator.cpp.

◆ XmlCdataEscape()

void CodeGenerator::XmlCdataEscape ( bool on )

virtual

Definition at line 754 of file cgp_codegenerator.cpp.

◆ MuteComments()

void CodeGenerator::MuteComments ( bool on )

virtual

Definition at line 769 of file cgp_codegenerator.cpp.

◆ MuteVspace()

void CodeGenerator::MuteVspace ( bool on )

virtual

Definition at line 774 of file cgp_codegenerator.cpp.

◆ Register()

void CodeGenerator::Register	(	const std::string &	type,
		CodeGenerator ()(void)	newcg
	)

static

Parameters

type	Identifier of class to register
newcg	Function to instantiate object of derived class

Definition at line 48 of file cgp_codegenerator.cpp.

◆ Registry()

std::vector< std::string > CodeGenerator::Registry ( void )

static

Returns: Registered CodeGenerator identifiers.

Definition at line 54 of file cgp_codegenerator.cpp.

◆ New()

CodeGenerator * CodeGenerator::New ( const std::string & type )

static

Parameters

type	Identifier of class to instantiate

Returns: New CodeGenerator object (NULL if unknown identifier)

Definition at line 63 of file cgp_codegenerator.cpp.

◆ DoCompile()

void CodeGenerator::DoCompile ( void )

protectedvirtual

Reimplemented in ATmegaCodeGenerator, CodePrimitives, EmbeddedcCodeGenerator, Iec61131stCodeGenerator, and KinetisCodeGenerator.

Definition at line 270 of file cgp_codegenerator.cpp.

◆ DoGenerate()

virtual void CodeGenerator::DoGenerate ( void )

protectedpure virtual

Implemented in ATmegaCodeGenerator, CodePrimitives, EmbeddedcCodeGenerator, Iec61131stCodeGenerator, KinetisCodeGenerator, and PlcoxmlCodeGenerator.

◆ DoRead()

void CodeGenerator::DoRead	(	TokenReader &	rTr,
		const std::string &	rLabel = `""`,
		const Type *	pContext = `0`
	)

protectedvirtual

The label argument is ignored, we use the hardcoded section "CodeGenerator". The context argument is ignored. This method calls the virtual hook DoReadTargetConfiguration() to be reimplemented by derived classes.

Parameters

rTr	TokenReader to read from
rLabel	Section to read
pContext	Read context to provide contextual information

Exceptions

Exception

IO error (id 1)

Definition at line 151 of file cgp_codegenerator.cpp.

◆ DoWrite()

void CodeGenerator::DoWrite	(	TokenWriter &	rTw,
		const std::string &	rLabel = `""`,
		const Type *	pContext = `0`
	)		const

protectedvirtual

The label argument is ignored, we use the hardcoded section "CodeGenerator". The context argument is ignored. This method calls the virtual hook DoWriteTargetConfiguration() to be reimplemented by derived classes.

Parameters

rTw	TokenWriter to write to
rLabel	Section to write
pContext	Read context to provide contextual information

Exceptions

Exception

IO error (id 2)

Definition at line 219 of file cgp_codegenerator.cpp.

◆ DoReadTargetConfiguration()

void CodeGenerator::DoReadTargetConfiguration ( TokenReader & rTr )

protectedvirtual

label

Parameters

rTr	TokenReader to read from

Exceptions

Exception

token mismatch (id 502)
IO error (id 1)

Reimplemented in ATmegaCodeGenerator, CodePrimitives, EmbeddedcCodeGenerator, GebtoolsCodeGenerator, Iec61131stCodeGenerator, KinetisCodeGenerator, and PlcoxmlCodeGenerator.

Definition at line 109 of file cgp_codegenerator.cpp.

◆ DoWriteTargetConfiguration()

void CodeGenerator::DoWriteTargetConfiguration ( TokenWriter & rTw ) const

protectedvirtual

label

Parameters

rTw	Reference to TokenWriter

Exceptions

Exception

IO errors (id 2)

Reimplemented in ATmegaCodeGenerator, CodePrimitives, EmbeddedcCodeGenerator, GebtoolsCodeGenerator, Iec61131stCodeGenerator, KinetisCodeGenerator, and PlcoxmlCodeGenerator.

Definition at line 196 of file cgp_codegenerator.cpp.

Member Data Documentation

◆ mWordAddressVector

std::vector<int> CodeGenerator::mWordAddressVector

Definition at line 403 of file cgp_codegenerator.h.

◆ mBitMaskVector

std::vector<word_t> CodeGenerator::mBitMaskVector

Definition at line 406 of file cgp_codegenerator.h.

◆ mName

std::string CodeGenerator::mName

protected

Definition at line 844 of file cgp_codegenerator.h.

◆ mGenerators

std::vector<TimedGenerator> CodeGenerator::mGenerators

protected

Definition at line 847 of file cgp_codegenerator.h.

◆ mGeneratorNames

std::vector<std::string> CodeGenerator::mGeneratorNames

protected

Definition at line 850 of file cgp_codegenerator.h.

◆ mAlphabet

cgEventSet CodeGenerator::mAlphabet

protected

Definition at line 853 of file cgp_codegenerator.h.

◆ mWordSize

int CodeGenerator::mWordSize

protected

Definition at line 856 of file cgp_codegenerator.h.

◆ mIntegerSize

int CodeGenerator::mIntegerSize

protected

Definition at line 859 of file cgp_codegenerator.h.

◆ mEventBitAddress

std::map<Idx,int> CodeGenerator::mEventBitAddress

protected

. #-1)

Definition at line 862 of file cgp_codegenerator.h.

◆ mEventFaudesIdx

std::map<int,Idx> CodeGenerator::mEventFaudesIdx

protected

Definition at line 865 of file cgp_codegenerator.h.

◆ mLastInputEvent

int CodeGenerator::mLastInputEvent

protected

Definition at line 868 of file cgp_codegenerator.h.

◆ mLastOutputEvent

int CodeGenerator::mLastOutputEvent

protected

Definition at line 871 of file cgp_codegenerator.h.

◆ mStateVectorAddress

std::vector< std::map<Idx,int> > CodeGenerator::mStateVectorAddress

protected

Definition at line 874 of file cgp_codegenerator.h.

◆ mStateFaudesIndex

std::vector< std::map<int,Idx> > CodeGenerator::mStateFaudesIndex

protected

Definition at line 877 of file cgp_codegenerator.h.

◆ mUsingVectorAddressStates

std::vector< bool > CodeGenerator::mUsingVectorAddressStates

protected

Definition at line 880 of file cgp_codegenerator.h.

◆ mTransitionVector

std::vector< std::vector<int> > CodeGenerator::mTransitionVector

protected

Definition at line 883 of file cgp_codegenerator.h.

◆ mUsedEvents

EventSet CodeGenerator::mUsedEvents

protected

Definition at line 886 of file cgp_codegenerator.h.

◆ mOutputEvents

EventSet CodeGenerator::mOutputEvents

protected

Definition at line 889 of file cgp_codegenerator.h.

◆ mInputEvents

EventSet CodeGenerator::mInputEvents

protected

Definition at line 892 of file cgp_codegenerator.h.

◆ mInternalEvents

EventSet CodeGenerator::mInternalEvents

protected

timers)

Definition at line 895 of file cgp_codegenerator.h.

◆ mLines

std::map<std::string, LineAddress> CodeGenerator::mLines

protected

Definition at line 898 of file cgp_codegenerator.h.

◆ mFlags

std::map<std::string, FlagExpression> CodeGenerator::mFlags

protected

Definition at line 901 of file cgp_codegenerator.h.

◆ mTimers

std::map<std::string, TimerConfiguration> CodeGenerator::mTimers

protected

Definition at line 904 of file cgp_codegenerator.h.

◆ mActionAddresses

std::map<std::string, ActionAddress> CodeGenerator::mActionAddresses

protected

Definition at line 907 of file cgp_codegenerator.h.

◆ mTimerActions

std::map<std::string, TimerAction> CodeGenerator::mTimerActions

protected

Definition at line 910 of file cgp_codegenerator.h.

◆ mVerbLevel

int CodeGenerator::mVerbLevel

protected

Definition at line 913 of file cgp_codegenerator.h.

◆ mOutMode

std::string CodeGenerator::mOutMode

protected

Definition at line 916 of file cgp_codegenerator.h.

◆ mMuteMode

char CodeGenerator::mMuteMode

protected

Definition at line 919 of file cgp_codegenerator.h.

◆ mMuteComments

bool CodeGenerator::mMuteComments

protected

Definition at line 922 of file cgp_codegenerator.h.

◆ mRecentMutedComment

std::string CodeGenerator::mRecentMutedComment

protected

Definition at line 925 of file cgp_codegenerator.h.

◆ pOutStream

std::ostream* CodeGenerator::pOutStream

protected

Definition at line 928 of file cgp_codegenerator.h.

◆ pErrStream

std::ostream* CodeGenerator::pErrStream

protected

Definition at line 931 of file cgp_codegenerator.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Protected Member Functions

Protected Attributes

Configuration – Generators

Compiled Data – Eventsets

Compiled Data – Generation of Events by Input Lines, Flags and Timers

Compiled Data – Effects of Events to Output Lines, Flags and Timers

Basic Class Maintenance

Configuration – Alphabet

Compiled Data – Transition Relation

Code Generation Interface

Code-Generator Registry

Detailed Description

Class Documentation

◆ CodeGenerator::ActionAddress

◆ CodeGenerator::FlagExpression

◆ CodeGenerator::LineAddress

◆ CodeGenerator::TimerConfiguration

Member Typedef Documentation

◆ Iterator

◆ word_t

◆ LineIterator

◆ FlagIterator

◆ TimerIterator

◆ ActionAddressIterator

◆ TimerActionIterator

Member Enumeration Documentation

◆ OutSink

Constructor & Destructor Documentation

◆ CodeGenerator()

◆ ~CodeGenerator()

Member Function Documentation

◆ Clear()

◆ Name() [1/2]

◆ Name() [2/2]

◆ Compile()

◆ VersionString()

◆ Size()

◆ Insert() [1/2]

◆ Insert() [2/2]

◆ At()

◆ Begin()

◆ End()

◆ EventIndex()

◆ EventName()

◆ EventAttribute() [1/2]

◆ EventAttribute() [2/2]

◆ Alphabet() [1/2]

◆ Alphabet() [2/2]

◆ EventTargetIdx() [1/2]

◆ EventTargetIdx() [2/2]

◆ EventBitAddress()

◆ EventFaudesIdx()

◆ EventBitMask() [1/2]

◆ EventBitMask() [2/2]

◆ EventBitMaskSize()

◆ WordFromBitVector()

◆ WordVectorFromBitVector()

◆ TransitionVector()

◆ StateTargetIdx()

◆ StateFaudesIdx()

◆ LinesBegin()

◆ LinesEnd()

◆ FlagsBegin()

◆ FlagsEnd()

◆ TimersBegin()

◆ TimersEnd()

◆ ActionAddressesBegin()

◆ ActionAddressesEnd()

◆ TimerActionsBegin()

◆ TimerActionsEnd()

◆ Generate()

◆ Verbose()

◆ OutputMode() [1/2]

◆ OutputMode() [2/2]

◆ Output()

◆ OutputString() [1/2]

◆ OutputString() [2/2]

◆ MuteMode()
